- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDP31-150
- Marketing Information

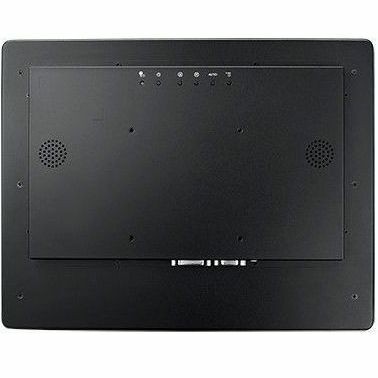

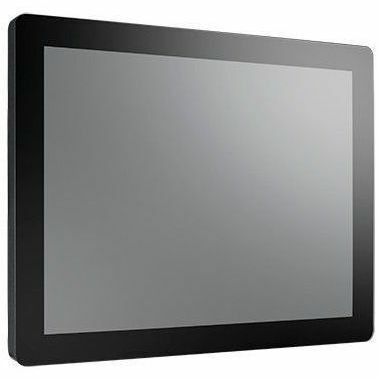

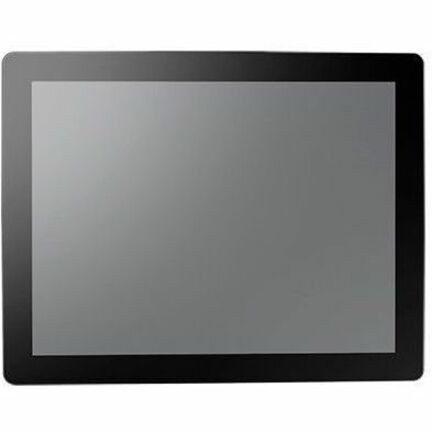

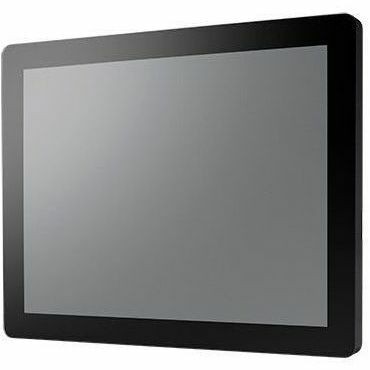

The IDP31-150 Proflat monitor responds to a demand for contemporary styling in demanding applications such as public signage, front of house information, medical and point-ofsale. The product features a truly-flat, easy to clean and maintain glass surface with long term product availability. IDP31-150 can be used in either portrait or landscape mode and is cleverly packaged in such a way that no further mechanical parts are needed other than a VESA mount to create a display system. The use of a metal chassis provides a rugged and stable platform to build solutions for the widest range of applications.
- Product Type
- LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 15"
- Viewable Screen Size
- 15"
- Screen Mode
- XGA
- Panel Technology
- In-plane Switching (IPS) Technology
- Response Time
- 25 ms
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Mount Type
- Front Mount
- Panel Mount
- Backlight Technology
- LED
- Features
- Bezel-less Design
- Ambient Light Sensor
- Wide Viewing Angle
- Landscape/Portrait Viewable
- Anti-reflective
- Remotely Operated
- Anti-fingerprint Coating
- Power Switch
- On-screen Display (OSD)
- Glass Hardness
- 6H
- Ingress Protection (IP) Rating
- IP67
- Video
- Maximum Resolution
- 1024 x 768
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 500 Nit
- Color Gamut
- 60% NTSC
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive

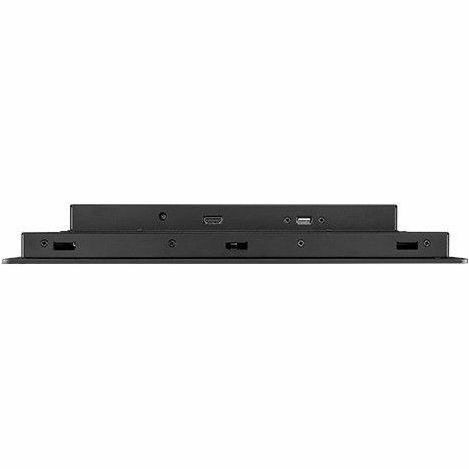

- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- Total Number of Mini HDMI Ports
- 1
- Number of USB Ports
- 1
- Environmental Conditions
- Operating Temperature Range
- -4°F (-20°C) to 158°F (70°C)
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Rugged
- Yes
- Height
- 11.4"
- Width
- 14.4"
- Depth
- 1.9"
- Weight (Approximate)
- 7.72 lb
