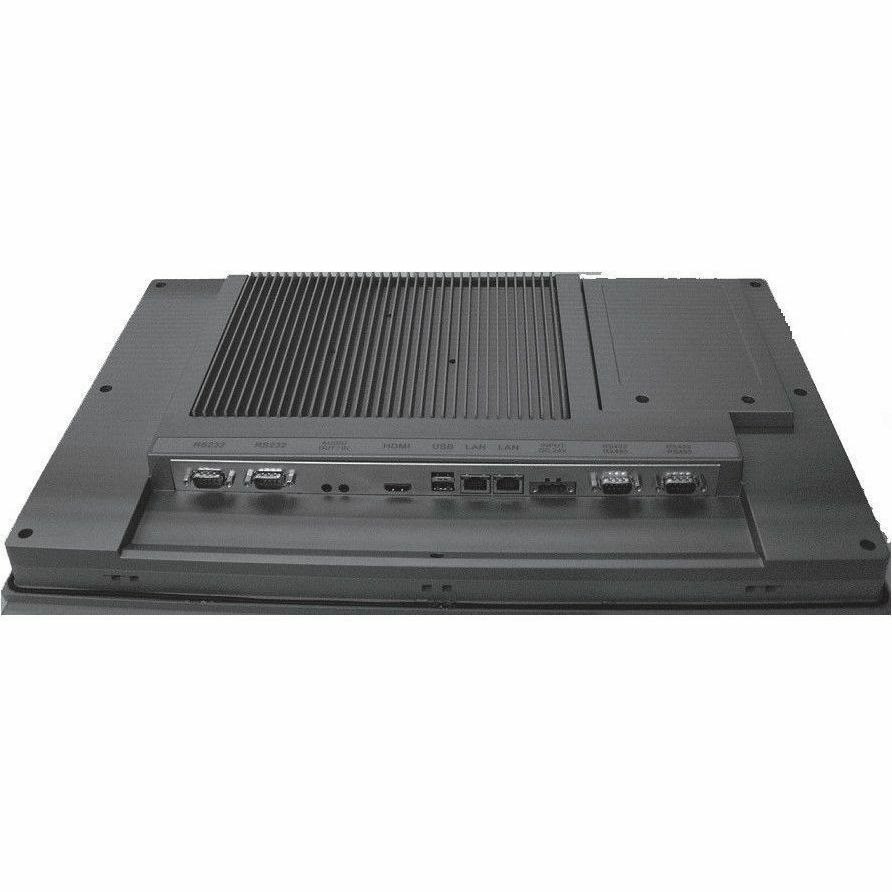

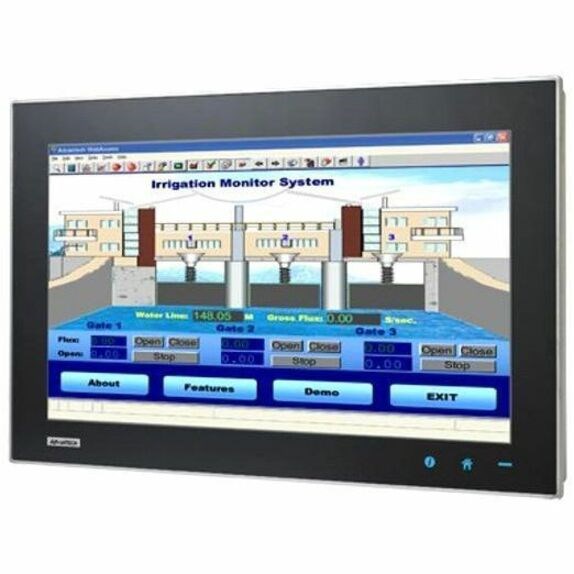

The TPC-2140WP touch panel computer features a 21.5" Full HD TFT LED LCD with a 16:9 widescreen aspect ratio and PCAP multi-touch control. Powered by an AMD T56E 1.65 GHz processor with independent GPU, TPC-2140WP can support advanced graphics performance for complex applications. The built-in function key and home key offer enhanced usability and intuitive operation. The side I/O cover provides easy access to the CFast, HDD, and mini PCIe slots. With the inclusion of a mini PCIe slot, the TPC-2140WP's functionalities can be easily expanded to support diverse applications.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Thin Client
- Processor
- Processor Type
- G-Series
- Processor Model
- T56E
- Processor Core
- Dual-core (2 Core)
- Processor Speed
- 1.65 GHz
- Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- A50M
- Memory
- Standard Memory
- 4 GB
- Memory Technology
- DDR3 SDRAM
- Display & Graphics
- Screen Size
- 21.5"
- Display Screen Type
- Active Matrix TFT LCD
- Screen Mode
- Full HD
- Screen Resolution
- 1920 x 1080
- Touchscreen
- Yes
- Backlight Technology
- LED
- Graphics Controller Model
- Radeon HD 6250
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- HDMI
- Yes
- Total Number of USB Ports
- 2
- Number of USB 2.0 Ports
- 2
- Network (RJ-45)
- Yes
- Physical Characteristics
- Form Factor
- All-in-One
- Height
- 13.77" (349.76 mm)
- Width
- 21.98" (558.29 mm)
- Depth
- 2.23" (56.64 mm)
- Weight (Approximate)
- 18.74 lb (8500 g)
