- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Marketing Information

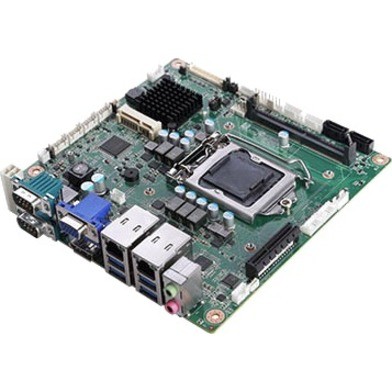

Advantech PPC-MB-8260AE is a Mini-iTX motherboard specifically designed to pair up with PPC-6151C panel chassis. Supporting Intel® desktop 6th Generation Core™ i7/i5/i3/Pentium/Celeron processor matched with Intel® H110 PCH Chipset, up to 16GB of 260-pin SO-DIMM DDR4 2133 MHz
The PPC-MB-8260AE also features rich I/O support-- including support for dual display and connectivity of 5 serial ports, 4 USB3.0 ports, dual GbE LAN ports, 1 PCIe x 4 and either 1 Full Size mSATA orMini PCIe, which application developers can flexibly use to configure functions meeting specific user needs.
- Product Type
- Desktop Motherboard
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- H110
- Total Processor Supported
- 1
- Processor Socket
- Socket H4 LGA-1151
- Processor Supported
- Celeron
- Pentium
- Core i3
- Core i5
- Core i7
- Memory
- Number of Memory Slots
- 1
- Memory Form Factor
- SODIMM
- Maximum Memory Supported
- 16 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 2133 MHz
- I/O Controller
- Controller Type
- mSATA
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Total Number of PCI Express Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 3.0 Ports
- 4
- VGA
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 2
- Onboard Interfaces
- Total Number of Onboard USB Ports
- 2
- Number of Onboard USB 2.0 Ports
- 2
- Physical Characteristics
- Form Factor
- Mini ITX
- Width
- 6.7"
- Depth
- 6.7"
