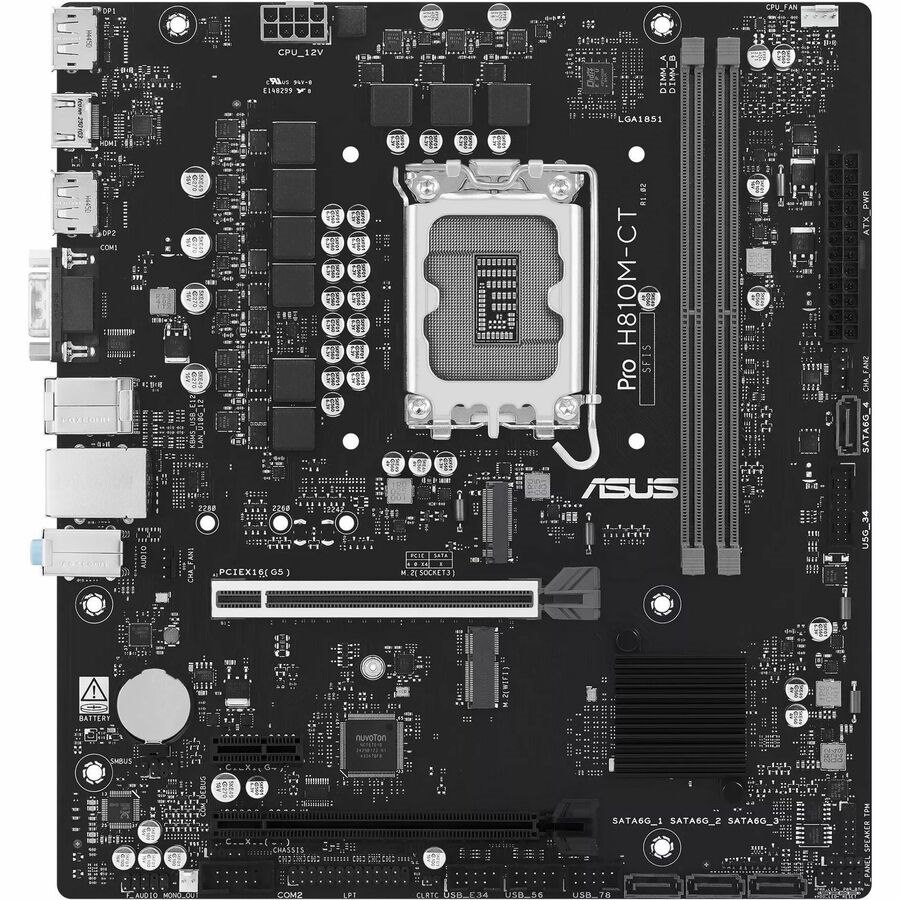

Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability
- Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket:Ready for Intel Core Ultra Processors (Series 2)
- ASUS CSM Program:A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express:Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security:A self-recovering BIOS, TXT, TPM to safeguard PCs and NIST SP 800-193 compliance
- Consistent and Reliable Performance:High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization:BIOS EZ Deploy, an event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability:Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity:PCIe 5.0, DDR5, rear USB 10Gbps Type-A
- DIY Friendly Design:SafeSlot, Dual DIMM clips, Box headers
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express - a US$60
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus
- Product Line
- Pro
- Product Type
- Desktop Motherboard
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- H810
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1851
- Processor Supported
- Core Ultra
- Memory
- Number of Memory Slots
- 2
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 6400 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 3
- PCI Express Standard
- PCI Express 4.0
- PCI Express 5.0
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x1 Slots
- 1
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 4
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 8
- Number of Onboard USB 2.0 Ports
- 6
- Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 9.6"
- Depth
- 8.8"
- Miscellaneous
- Package Contents
- Pro H810M-CT-CSM Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O shield
- 1 x M.2 anchor package
- 1 x Screw package for M.2 Key E
- 1 x ACC Express activation key card
- 1 x Quick start guide
- Brand Compatibility
- Intel
- TCO Certified
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
