- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Type
- Battery Cabinet

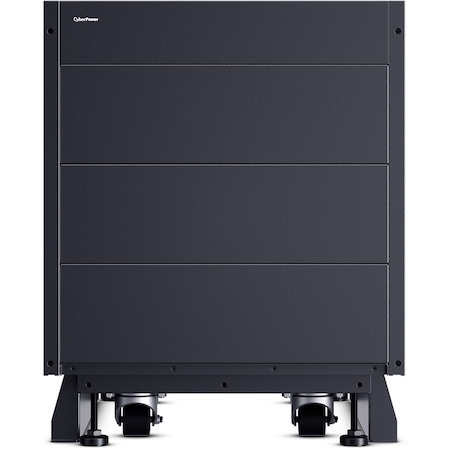

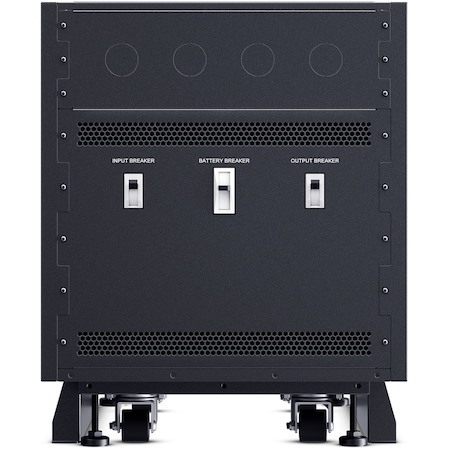

The CyberPower BCT3L9N125 3-Phase Modular UPS Battery Cabinet can hold up to 6 battery modules (BM120V30ATY). These 3-layer units can be configured as stand-alone cabinets, rack mounted, or stacked with another component of our modular UPS system. Includes a One-Year Limited Warranty.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Battery Characteristics
- Valve Regulated Lead Acid (VRLA)
- Hot Swappable
- Yes
- Output Voltage
- 240 V DC
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Physical Characteristics
- Product Color
- Black
- Form Factor
- Rack/Tower/Stack
- Modular
- Rack Height
- 11U
- Height
- 23.9"
- Width
- 19.1"
- Depth
- 30.5"
- Weight (Approximate)
- 134.70 lb
- Miscellaneous
- Package Contents
- BCT3L9N125 Battery Cabinet
- Mounting Hardware
- Additional Information
- Battery Module Capacity Maximum: 6
- Boost Charge Voltage: 2.4 VDC/Cell, Constant Current and Constant Voltage Charge Mode
- Boost Charge Voltage (Selectable): 2.3 - 2.45 VDC/Cell
- Charger Voltage Tolerance: ≤1% Float
- End of Discharging Voltage 0.15C discharge current: 1.75 VDC/Cell
- End of Discharging Voltage 0.15C discharge current (Selectable): 1.65 - 1.8 VDC/Cell
- End of Discharging Voltage 0.6C discharge current: 1.65 VDC/Cell
- End of Discharging Voltage 0.6C discharge current (Selectable): 1.6 - 1.75 VDC/Cell
- Float Charge Voltage: 2.25 VDC/Cell
- Float Charge Voltage (Selectable): 2.2 - 2.35 VDC/Cell
- Hot Swappable Battery Module: Yes - Qualified Personnel Only
- Recharge Power: Default 10% x Power
- Replacement Battery Cartridge Quantity: 6
- Ripple Current: ≤5% C10
- Ripple Voltage: ≤1% VDC Float
- Temperature Compensation (Per Cell): -3 mV/°C
- Temperature Compensation (Selectable): 0 - 5 mV/°C
- Material of Construction: Metal
- Operating Elevation: 0 - 10000 ft (0 - 3048 m)
- Operating Elevation Note: At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Operating Temperature Note: Battery life is halved for every 10°C increase above 20°C
- Storage Battery Temperature Note: Optimum battery storage between -15°C and 20°C
- Storage Relative Humidity: 0 - 95% (non-condensing)
- Storage Temperature: 5 - 104 °F (-15 - 40 °C)
- Certifications & Standards
- Safety: cTUVus
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
