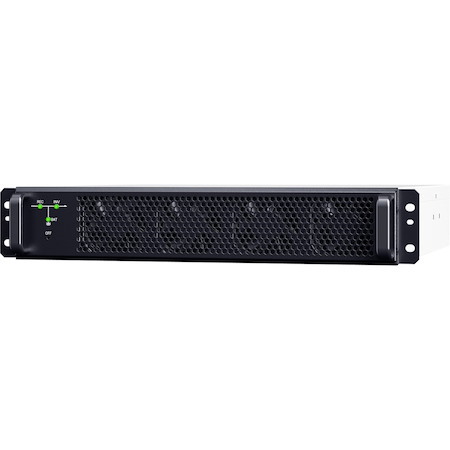

CyberPower 3-Phase Modular UPS SM010KAPMA Power Modules are ultra-robust units capable of handling brief overcurrents of up to 150%. Indicator lights show status of each Power Module and the high-density design puts 10KVA of power in just 2U of space. Includes a One-Year Limited Warranty. For CyberPower 3-Phase Modular UPS Smart App Online Series models SM020KAMFA, SM040KAMFA.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Line
- Smart App Online
- Product Series
- 3-Phase Power Modules
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Overload Protection
- Yes
- Phase
- Three Phase
- Energy Saving
- Online ECO Mode Efficiency >97.5%
- Power Description
- Load Capacity (VA)
- 10000 VA
- Load Capacity (Watt)
- 10 kW
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Controls/Indicators
- Status Indicators
- LED Indicators: Rectifier
- Battery Information
- Battery Characteristics
- Hot-swappable
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Maximum Operating Elevation
- 10000 ft
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 56 dB(A)
- Thermal Dissipation
- 819.96 W
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Silver
- Black
- Form Factor
- Modular
- Rack Height
- 2U
- Height
- 3.3"
- Width
- 17.2"
- Depth
- 23.2"
- Weight (Approximate)
- 36.20 lb
- Miscellaneous
- Additional Information
- Energy Saving : Online ECO Mode Efficiency >97.5%
- UPS Topology : Online Double Conversion
- Boost Charge Voltage : 2.4 VDC/Cell, Constant Current and Constant Voltage Charge Mode
- Float Charge Voltage : 2.25 VDC/Cell
- Hot Swappable : Yes
- Physical Dimensions - (WxHxD) (cm) : 43.69 x 8.38 x 58.93 (cm)
- Physical Dimensions - (WxHxD) (in) : 17.2 x 3.30 x 23.20 (in)
- Physical Dimensions - (WxHxD) (mm) : 437 x 84 x 589 (mm)
- Weight (kg) : 16.42
- Weight (lb) : 36.20
- Shipping Dimensions - (WxHxD) (cm) : 57.15 x 22.56 x 72.09 (cm)
- Shipping - Dimensions (WxHxD, in) : 22.5 x 8.88 x 28.38 (in)
- Shipping - Dimensions (WxHxD, mm) : 571.5 x 225.55 x 720.85 (mm)
- Shipping - Weight (kg) : 19.5
- Shipping - Weight (lb) : 43
- Power Module - Rack Units : 2U
- Input Frequency Range : 40 Hz - 70 Hz
- Input Power Factor : 0.99
- Phase : 3 Phase
- Output Frequency : 50/60 Hz (auto-sensing/configurable)
- Output Power Factor : 1
- Overload Protection : 110% Load for 10 min
- VA : 10000 VA
- Watts : 10000 W
- LED Indicators : Rectifier
- Color : Silver/Black
- Form Factor : Modular
- Material of Construction : Metal
- Mounting Hardware : No
- Rack Height : 2U
- Audible noise at 1m from surface of unit : 56 dBA
- Maximum Air Exchange : 4.5 m3 /min
- Online Thermal Dissipation : 2797.83 BTU/hr
- Operating Elevation : 0 - 10000 ft (0 - 3048 m)
- Operating Elevation Note : At ?1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 32 - 104 °F (0 - 40 °C)
- Operating Temperature Note : Battery life is halved for every 10°C increase above 20°C
- Storage Battery Temperature Note : Optimum battery storage between -15°C and 20°C
- Storage Relative Humidity : 0 - 95% (non-condensing)
- Storage Temperature : -4 - 158 °F (-20 - 70 °C)
- Models : SM020KAMFA, SM040KAMFA
- UPS Models : SM020KAMFA, SM040KAMFA
- Environmental : RoHS Compliant
- Safety : cTUVus
- Product Warranty : 1 Year Limited Warranty
- Certifications & Standards
- Safety: cTUVus
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
