- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- S6010
- Product Type
- Transceiver/Media Converter

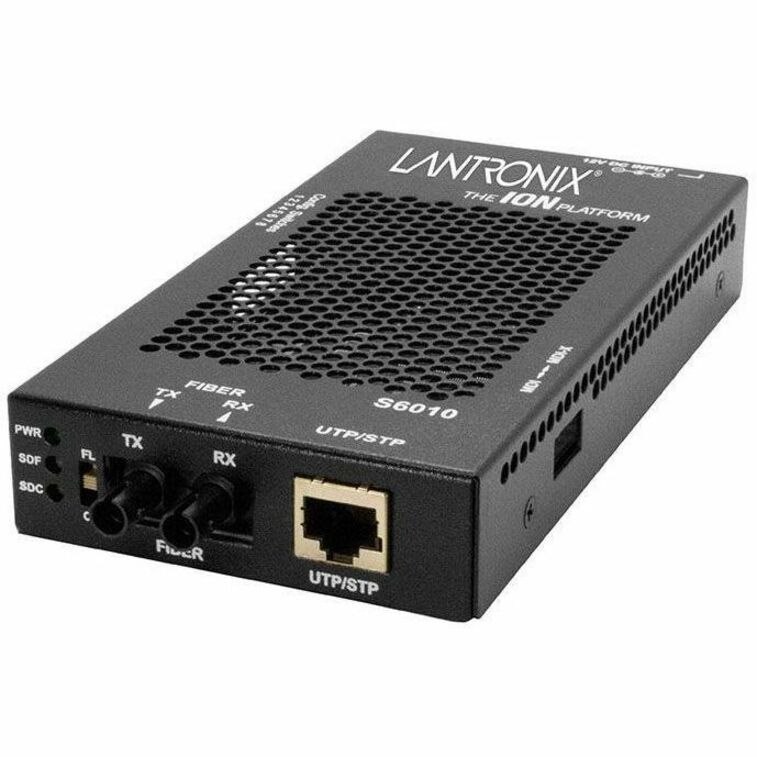

Stand-alone DS1 - T1/E1 Remotely Managed NID
DS1 - T1/E1 over Fiber
The ION S6010 is a stand-alone managed media converter that offers a solution for extending DS1 - T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These DS1 - T1/E1 converters must be used in pairs, one on each end of the fiber link. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6010 is linked to a C6010 card installed in a managed ION Chassis. These DS1 - T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Number of ST Ports
- 1
- Number of RJ-48 Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1300 nm
- Maximum Distance Supported
- 2 km
- Network & Communication
- Carrier Supported
- T-carrier/E-carrier
- Network Technology
- T1/E1
- Power Description
- Power Source
- AC Adapter
- Input Voltage
- 230 V AC
- 120 V AC
- Power Consumption
- 2.60 W
- Physical Characteristics
- Form Factor
- Wall Mountable
- DIN Rail Mountable
- Rack-mountable
- Standalone
- Shelf Mount
- Height
- 1"
- Width
- 3.3"
- Depth
- 6.5"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- S6010-1011 Transceiver/Media Converter
- Power Supply - South Africa
- Application/Usage
- Data
- Network
- Additional Information
- Twisted Pair (RJ-48) [1.5 km/0.9 mi.] to 1300nm multimode (ST) [2 km/1.2 mi.] Link Budget: 11.0 dB
- Certifications & Standards
- EN55035/55032 Class A, FCC Class A, CE, UKCA, UL
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
