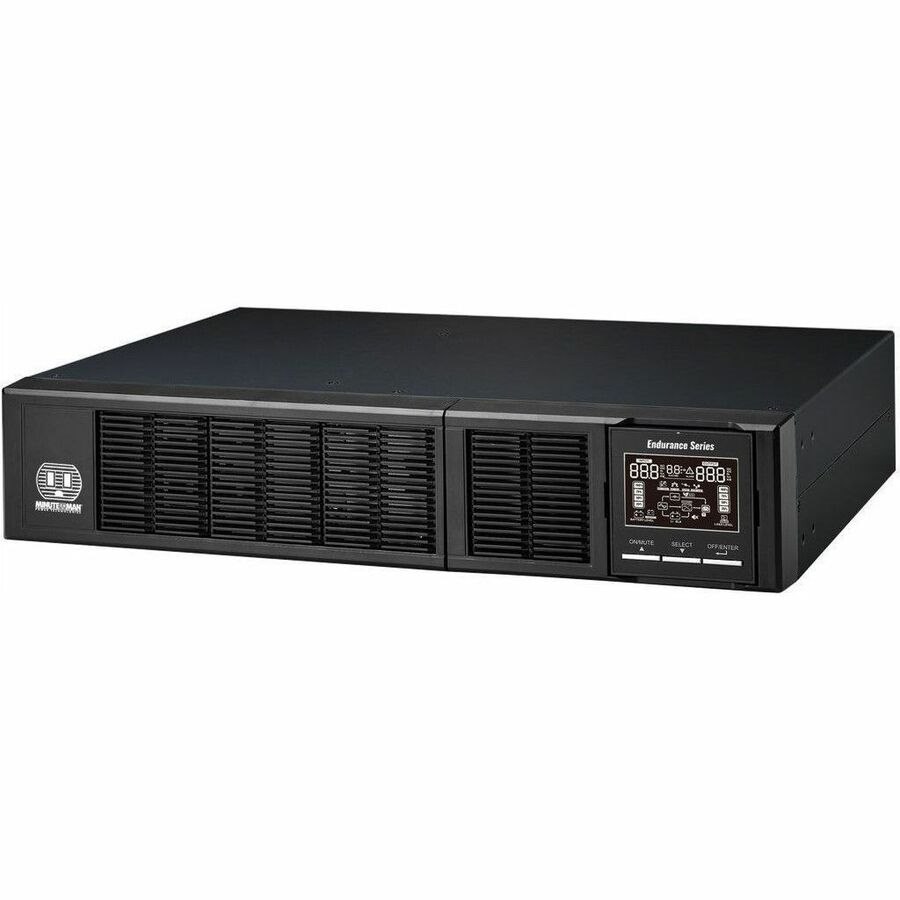

High density, double conversion On-Line UPS Series. Light and compact with advanced lithium battery technology.
Designed to protect the most sensitive IT and business infrastructure against the worst power environments. Continuous power conditioning with no signal transfer time, pure sinewave output. Wide variety of installation options to create the perfect power protection solution. 5-year product warranty, including batteries.
Ideally designed to protect the following markets and channels:
- Critical server, network, and telecommunications equipment
- Network servers, voice/data networks, healthcare and laboratory facilities and light industrial applications
- IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and power factor correction.
- Information Technology (IT), Edge Computing, Medical and Healthcare, Security and Access Control, Colleges and Universities, K-12 Education, Federal, State and Local government installations.
Key Product Features:
- LCD panel for configuration, monitoring and management of the UPS
- Advanced lithium (LiFePO4) battery technology
- Reduced rack footprint for greater density installations
- Tool-less battery connection using front panel of UPS
- Hot-swappable batteries
- 5-year product warranty (including batteries)
- Compatible with Minuteman SentryHD software
- True double-conversion online technology
- Automatic internal bypass
- Independent battery bypass
- Smart fan control
- Cold start function
- Available option slot
- Simultaneous serial communication options
- REPO port
- General Information
- Manufacturer
- Para Systems, Inc
- Manufacturer Website Address
- http://www.minutemanups.com
- Brand Name
- Minuteman
- Product Line
- Endurance
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
5-year product warranty, including batteries
- Technical Information
- Transfer Time
- 0 ns
- Phase
- Single Phase
- Efficiency Detail
- 90% (AC Mode)
- 96% (Eco Mode)
- 87% (Battery Mode)
- Application/Usage
- IT Infrastructure
- Business
- Server
- Network
- Telecommunication
- Equipment
- Voice/Data Network
- Healthcare
- Medical Laboratory
- Light Industrial Application
- Edge Computing
- Medical
- Security
- Access Control
- Education
- Government
- Features
- Built-in Bypass Switch
- Cold Start Function
- Power Description
- Load Capacity (VA)
- 1000 VA
- Load Capacity (Watt)
- 900 W
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 160 V AC - 265 V AC
- 80 V AC - 140 V AC
- 55 V AC - 160 V AC
- Output Voltage
- 100 V AC
- 110 V AC
- 115 V AC
- 120 V AC
- 125 V AC
- 127 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Output Frequency
- 47 Hz
- 53 Hz
- 57 Hz
- 63 Hz
- 50 Hz
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Input Power Factor
- 0.99
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Smart RS-232/USB
- Network Card
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- Number of Batteries
- 1
- Battery Chemistry
- Lithium Iron Phosphate (LiFePO4)
- Backup/Run Time (Full Load)
- 12 Minute
- Backup/Run Time (Half Load)
- 25 Minute
- Typical Battery Recharge Time
- 2 Hour
- Hot Swappable
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Operating Humidity
- 20% - 95%
- Physical Characteristics
- Height
- 3.5"
- Width
- 17.2"
- Depth
- 16.1"
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 23.80 lb
- Miscellaneous
- Certifications & Standards
IP20
