- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 328.08 ft (100 m)
- Night Vision Type
- Infrared/Color
- Number of IR LEDs
- 2
- Infrared (IR) Cut-off Filter
- Yes
- Wide Dynamic Range (WDR)
- Yes
- Wide Dynamic Range Detail
- 120 dB
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.9"
- Color Supported
- Color
- Field of View
- Horizontal FOV: 2.30°-57.06° ? Vertical FOV: 1.31°-32.74° ? Diagonal FOV: 2.63°-65.01
- Effective Camera Resolution
- 4 Megapixel
- Video
- Video Formats
- H.265+
- H.265
- H.264+
- H.264
- MJPEG
- H.264 HP
- H.265 (MP)
- Maximum Video Resolution
- 2688 x 1520
- Maximum Frame Rate
- 30 fps
- Audio
- Audio Support
- Yes
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 5.2 mm (0.20")
- Maximum Focal Length
- 130 mm (5.12")
- Lens Included
- Yes
- Maximum Aperture
- f/1.6
- Optical Zoom
- 25x
- Exposure
- Shortest Shutter Speed
- 1/30000 Second
- Longest Shutter Speed
- 1/3 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Fast Ethernet
- Protocols
- TCP/IP
- UDP
- ICMP
- ARP
- SNMP
- SMTP
- RTMP
- HTTP
- HTTPS
- DHCP
- DNS
- RTSP
- RTP
- NTP
- IPv4
- IPv6
- UPnP
- SSL/TLS
- FTP
- SFTP
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 21.60 W
- Input Voltage
- 12 V DC
- Power Source Type
- DC
- PoE
- Physical Characteristics
- Mount Type
- Wall Mount
- Form Factor
- Dome
- Durability
- Vandal Proof
- Weather Proof
- Product Material
- Metal
- Weight (Approximate)
- 6.17 lb (2800 g)
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 149°F (65°C)
- Minimum Storage Temperature
- -40°F (-40°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Maximum Storage Humidity (Non-condensing)
- 95%
- Miscellaneous
- Features
- Built-in Siren
- Digital Defog
- Built-in Microphone
- PTZ
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Privacy Masking
- Built-in Speaker
- Password Protection
- HTTPS Encryption
- Indoor/Outdoor
- Outdoor
- Package Contents

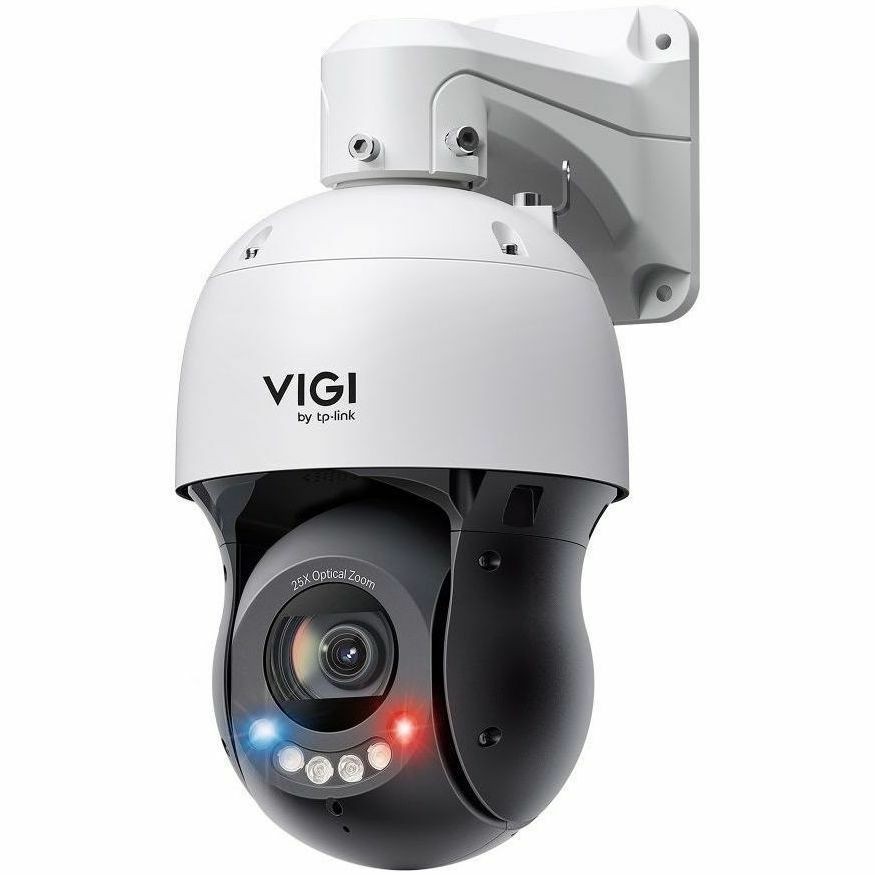

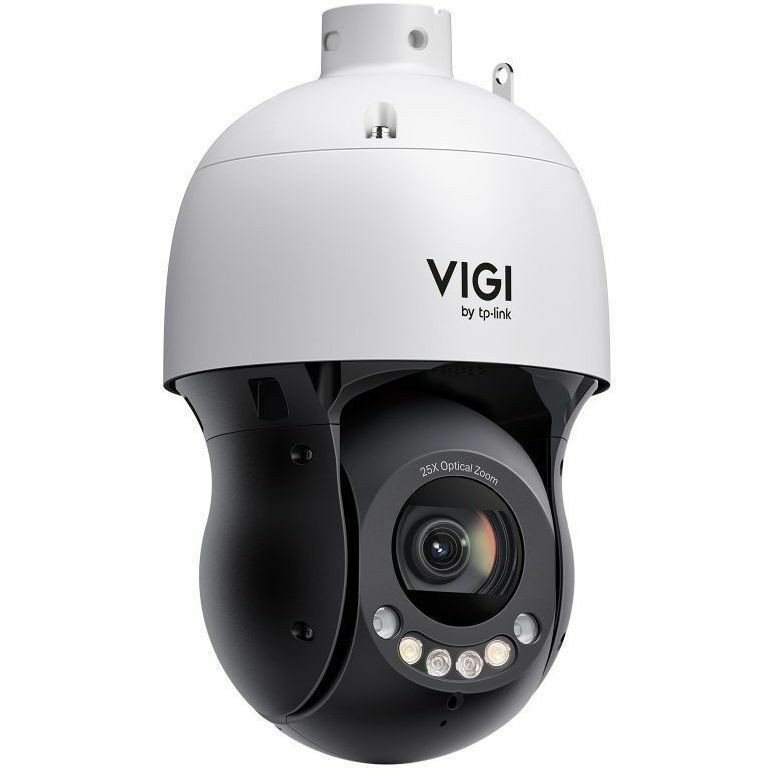

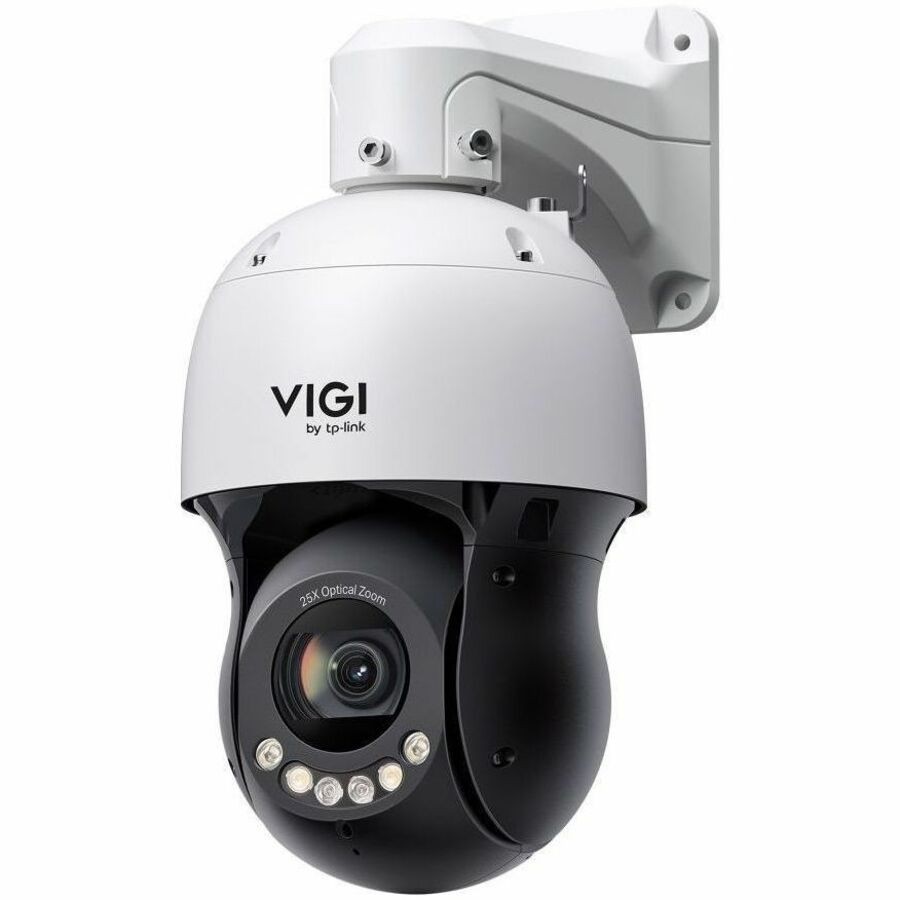

- 5-inch 4MP 25X Full-Color Network Speed Dome
- Installation Guide
- Waterproof Cable Attachments
- Mounting Accessories
- Impact Protection Rating
- IK08
- Ingress Protection Rating
- IP66
